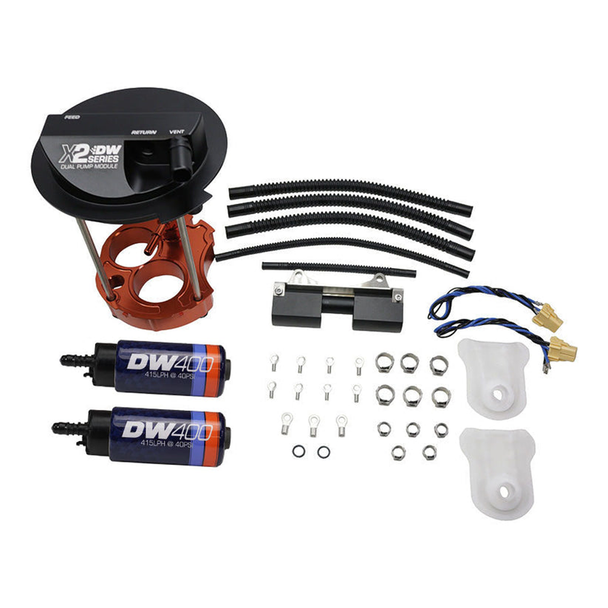

DeatschWerks X2 Series Fuel Pump Module w/ 2 DW400 Pumps 2016-2024 Camaro SS, ZL1 & LT1 Coupe & 2016-2019 Cadillac ATS-V & CTS-V

Details:

• OEM tank fitment
• -10AN Feed Line
• -6AN Return Line
• Keeps all OEM Sensor, Capacity and Surge Features
• 200% Increase Over OEM SS & ZL1 Module
• Includes 2 - DW400 fuel pumps
• 500+ LPH Open Flow, 415LPH At 40 PSI
• Outflows Walbro 450 "e85" by 31% (70-100 psi)
• Rated To 120psi Total Fuel Pressure
• Carbon Commutator For e85 Compatibility
• Anodized Black Top Hat
• Anodized Orange Fuel Pump Mount

When it comes to extra fuel needed to achieve the power goals you have set for your Camaro or Cadillac, DeatschWerks has created the X2 fuel pump module that is equipped with 2 of their powerful DW400 fuel pumps to supply you with plenty of fuel for your needs. The module includes accommodation for 2 pumps, integration of a return fuel line, and retention of ALL the functionality of OE module. The DW X2-Series Camaro Module consists of a top-hat, center section, installation kit and fuel pressure sensor adapter. These components work together to deliver the flow you need and the OE functionality you want.

The DW400 is the highest flowing in-tank fuel pump on the market. Quiet operation and pulse width modulation compatibility are delivered via the turbine impeller and computer balanced armature. E85 compatibility is built in via the carbon commutators and a fully encapsulated armature.

Note: Due to the OEM GM fuel pump controller, it is necessary to either turn off the variable voltage/duty cycle options or bypass the Fuel Pump Control Module completely. This is done easily with a hardwire kit like the (FPHWK-10-DP) (Fuel Pump Hardwire Kit 10AWG Dual Pump), this will ignore the variable signal delivered by the Fuel Pump Control Module and use a direct battery voltage to run the fuel pumps.

Installation Instructions (opens in new tab): Click HERE

X2 Pump Module Data Sheet (opens in new tab): Click HERE

In-Tank Pump Data Sheet (opens in new tab): Click HERE

Emissions Disclaimer: This product is NOT CARB legal and CAN NOT ship to California.

Part Number: 9-401-7003
