Diode Dynamics SS3 Add-On Fog Lamp Kit, Yellow Sport 2024-2025 Ford Mustang GT

Features:

• Adds SAE-compliant fog lights to the 2024+ Ford Mustang.
• OEM appearance with included custom-designed bezel.
• Vehicle-specific harness allows for factory-like operation.
• Distinctive integrated amber backlight.
• Engineered and assembled in USA.

Specs:

• Main Beam Power (watts): Sport: 14.5, Pro: 36, Max: 38.5
• Backlight Power (watts): 0.4
• Main Beam Current (amps @ 12.8V): Sport: 1.1, Pro: 2.7, Max: 3
• Backlight Current (amps @ 12.8V): 0.03
• Operating Voltage: 9-30V
• Datasheet(s) (click to download): SS3 Sport White Standard, SS3 Sport Yellow Standard, SS3 Pro White Standard, SS3 Pro Yellow Standard, SS3 Max White Standard, SS3 Max Yellow Standard
• Beam Angle: Fog, 80°x8°
• Polarity: Polarity Specific
• Operating Temperature: -40C to 85C (-40F to 185F)
• LED Emitter: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
• Connector(s): Deutsch DT Input
• Driver Features: Constant Current
• Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
• Cooling: Passive, Pin-Fin heatsink
• Compliance Ratings: SAE J575 Durability Test, SAE J583 Foglamp Beam Pattern
• Intrusion Ratings: IP69K Waterproof, High Pressure

What's Included In the Box:

• Two (2) SS3 Type A Fog Lamps
• Two (2) Vehicle specific Fog Lamp Bezels
• One (1) Add-On Fog Harness
• Four (4) Zip ties
• Two (2) T-taps
• Hardware Kit

While the 2024 Ford Mustang doesn’t come with a factory fog light option, there is still a need for light directly in front of the vehicle to increase visibility in foggy, dusty, snowy, or rainy conditions. Headlights simply weren’t designed to provide this kind of visibility, so that’s where we come in. Introducing our new add-on Stage Series Fog Lamp Kit for the 2024+ Ford Mustang! This kit allows you to mount two SAE-compliant fog pods in the factory bumper while maintaining an OEM appearance thanks to the custom-designed, vehicle-specific bezels.

Aggressive Appearance Our team of in-house engineers have designed two unique bezels to fit perfectly into the factory bumper of the GT and EcoBoost trim levels without any cutting or modification to the factory bumper. These bezels retain the unique styling of the OEM grilles, while the included SS3 LED pods provide a more aggressive appearance. For GT owners, we've kept performance in mind, ensuring the bezel allows for adequate airflow to the cooling system. With a truly unique design, this add-on fog light kit is sure to make your S650 Mustang stand out on the road.

Factory-like Operation. Unlike other basic harnesses on the market, the Add-On Fog Harness included in this kit allows the fog lights to operate automatically, just like you'd expect from the factory. By using our vehicle-specific harness, the backlight will come on with the parking lights, and the main beam will operate just as a factory fog light, turning on with the low beams and turning off with the high beams. This is much more convenient than manually flipping a switch on every time you want to use them!

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE Compliant. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

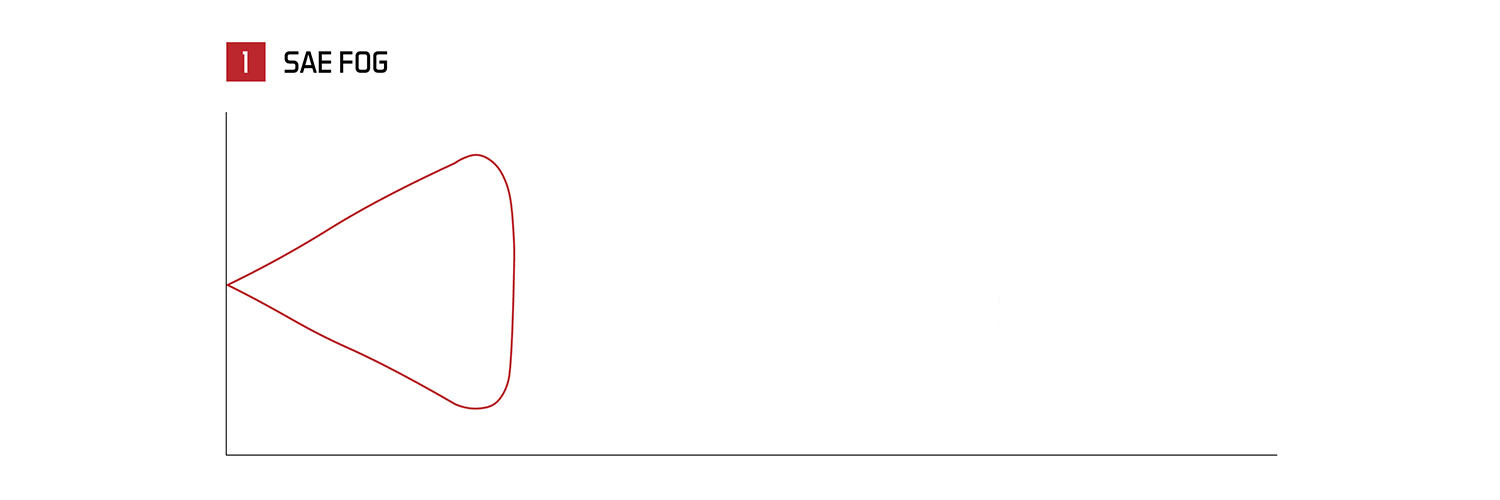

SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

Backlight Functionality. The Stage Series 3" LED Pod features a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

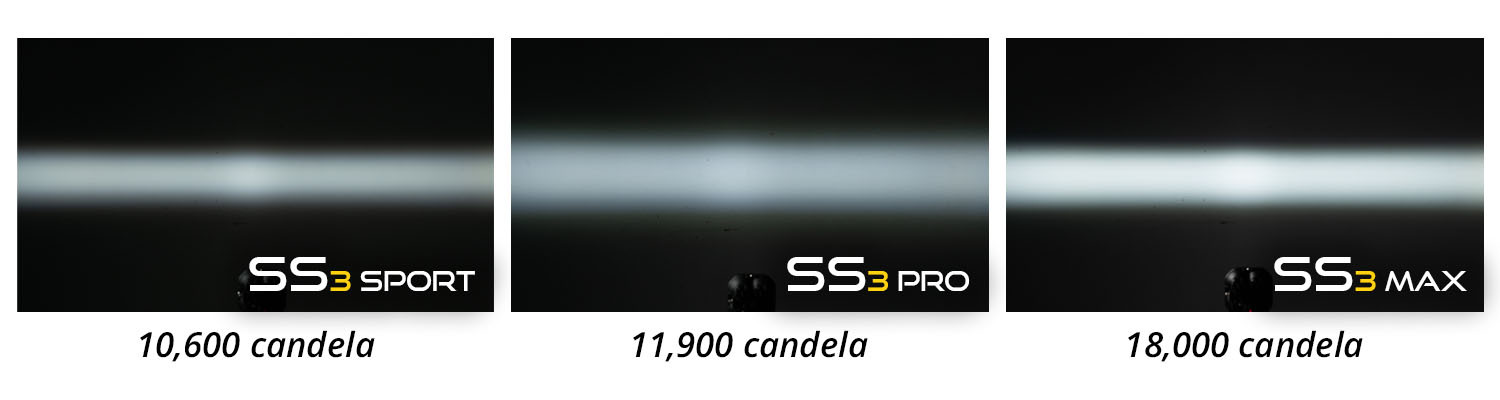

Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. Whether it's a or anything else, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

Installation Instructions (opens in new tab): Click HERE

Part Number: DD7971
