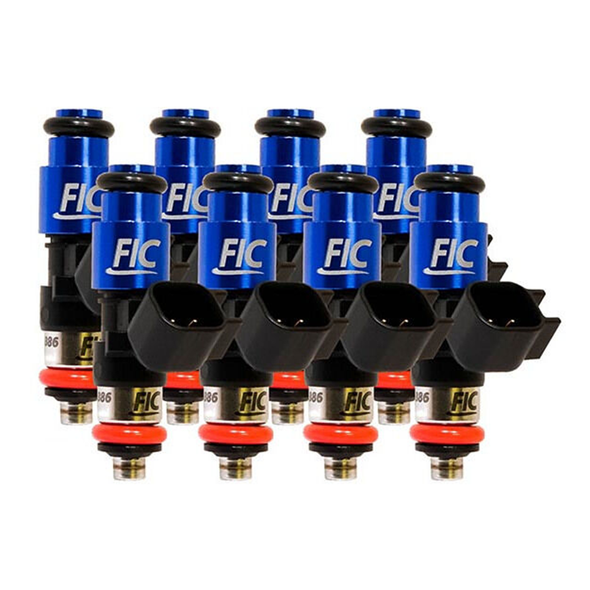

Fuel Injector Clinic 525cc (58lbs) Injectors, Set of 8 2005-2007 Corvette Base

Details:

• Cylinder Quantity: 8
• Impedance: High-Z
• Fuel Type: Gasoline, E85, Ethanol/Methanol
• Injector Height: 53mm
• Top/Bottom O-Ring: 14mm

Features:

• These injectors utilize the latest technology and provide great linearity and short pulse width repeatability.
• Injector sets are precisely flow matched to within 1%. Each injector within each set is individually numbered and results for each injector are listed on a detailed flow sheet included with the set.
• Flow tested and rated at 43.5psi (3Bar) at 90 degrees F fuel temperature using CF-16B calibration fluid.
• Superior short pulse width control and tight manufacturing tolerances make these injectors easy to tune and provide great drivability.
• Injectors are set up to and include all O-rings needed to fit the factory application.
• Easy to install, drop-in fitment with the factory style connector - no plug conversion required!

Max Wheel HP Rating at 90% Duty Cycle

Fuel Injector Clinic Injector Set: 8x525cc/min (50lbs/hr) at 3 bar (43.5psi) fuel pressure and 58lbs/hr (600cc/min) at OE 58psi (4 bar) fuel pressure. Saturated / High Impedance Injectors.

This injector set is precisely matched using Fuel Injector Clinic's proprietary Data Match Technology. Each injector is individually serial numbered and the results are provided on the Data Match Sheet providing the most complete flow matching and latency value information available in the industry today.

Note: In order to be conservative, Fuel Injector Clinic recommends a maximum duty cycle of 90%

Part Number: IS302-0525H
