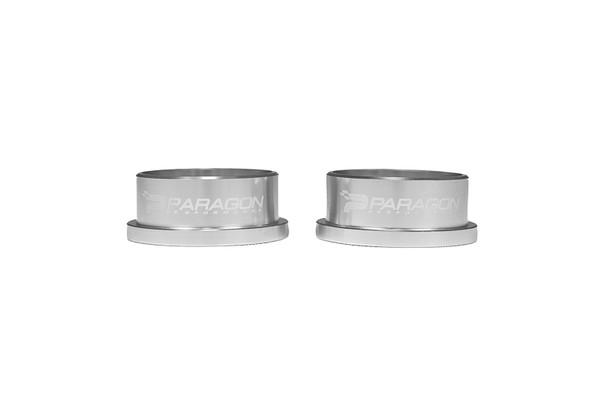

Paragon Front Lift Lowering Collars 2020-2025 C8 Corvette

Paragon Performance
Product SKU:
PRGN-PP-S0001
Item Shipping:
FREE Shipping
Availability:
In-Stock
Our Price: $99.99
Select Options
  • Paragon Magnetic Ride Socket Tool ::
  • Paragon Magnetic Ride De-Pin Tool :: 2020-2025 Corvette
  • Paragon Front Lift Lowering Collar Riser Shims :: 2020-2025 Corvette
Frequently bought together:
Description

Features:

  • Made from 6061 Aluminum
  • Lowers front end about an inch ( .75 inch matches factory adjustment )
  • Retains Front Lift Function, your car will still raise up
  • Designed and Made in the USA
  • Anodized black with laser logo for a completed look
  • Lifetime Warranty
  • Mag Ride socket and de-pin tool is optional for the DIY guys
  • Bump stops do not need trimmed. GM planned for Z51 cars to be lowered .75 inches ( factory max allowed ). The bump stop on the front lift cars are same as all Z51's. No trimming is needed.





We all know the stock ride height is a better fit for GM trucks than a flagship sports car like the C8 Corvette. This lowering collar is for front lift C8 Corvettes and will allow you to lower your car like other Z51 cars that do not have the front lift option. Combined with the factory rear adjustable collars you can achieve the same factory lowering capabilities as other Z51 C8 Corvettes.



This item was designed in house in CAD software, then 3D printed in a couple versions to verify fitment and lowering capabilities. After completed testing it was then produced accurately via CNC machine work.




Mag Ride Socket
This socket is more than likely needed for your install. Some shops may have this socket already but most people do not as it's a specialty tool. Be sure to watch the install video below to see if you need this or not.


De-Pin Tool
This tool makes de-pinning the connector on mag ride cars much easier. You can still do it without this tool, but be prepared to be frustrated for about 15-20 mins while you fiddle with other small flat heads to try and de-pin the connector.


Shims
We have added the option for a 3/8" riser shim. This will allow people who do not want a full .75" drop to achieve a 3/8" drop. This can be used to fine tune your drop if you have aftermarket springs and want to raise things up a bit or if you just don't want to lower your car the full 3/4".





Note: Works with Stingray 1" Lowering Springs and Paragon 20mm Spacers. Cars equipped with all 3 (lowering collars, 20mm spacers and springs) will need to run front camber of -1.5 degrees.



Part Number: PP-S0001
