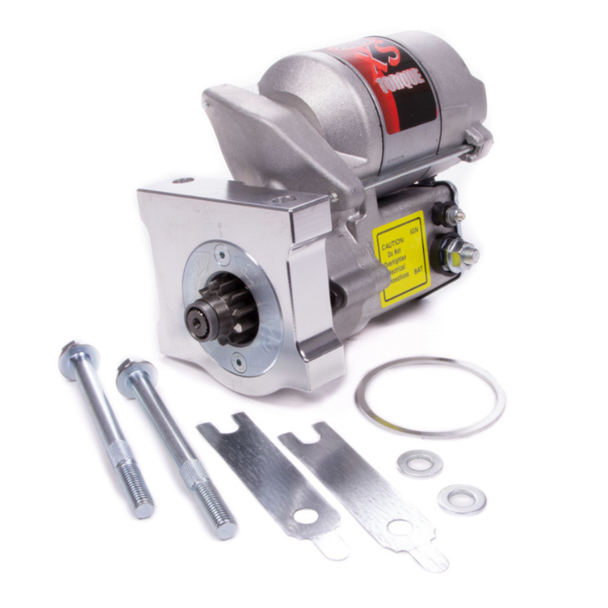

Powermaster 9509 XS Torque Mini Starter - 9509 For GM LS Series Engines 168 Tooth Flywheel

Features:

• XS Torque high-performance mini starter
• Delivers 200 ft-lbs of cranking torque
• Supports engines up to 18.0:1 compression ratio
• 4.4:1 gear reduction for efficient, high-torque starting
• Infi-Clock™ billet aluminum mounting block with full 360° rotation
• Clears most headers and oil pans
• Encapsulated solenoid helps prevent heat soak and hot-start issues
• Lightweight design: 8.75 lbs
• Fits 168-tooth flywheels/flexplates
• Includes bolt and shim installation kit
• Individually dyno tested with proof of performance
• Standard rotation
• Natural finish

The Powermaster 9509 XS Torque Infi-Clock™ Mini Starter is engineered for high-compression LS and LSX applications where clearance, reliability, and cranking power are critical. Producing 200 ft-lbs of torque, up to 1.8 horsepower (1.4 kW), and capable of starting engines up to an 18.0:1 compression ratio, this starter delivers strong, consistent performance for demanding street and race builds.A 4.4:1 gear reduction multiplies torque while reducing current draw. The Infi-Clock™ billet aluminum mounting block allows full 360-degree rotation for precise clocking to maximize clearance around headers, oil pans, and tight engine bays. An encapsulated solenoid helps prevent heat soak and hot-start problems, and each unit is individually dyno tested with proof of performance. Starter bolts and shims are included for proper pinion-to-ring gear engagement during installation.

Important Installation Note: Starter heat wraps or thermal shields are not recommended. Wrapping the starter can trap heat and lead to overheating, reduced performance, or internal damage. Powermaster XS Torque starters are designed to operate without external heat shields.

Part Number: 9509
